- FeederIQ Medium Voltage Power Line Carrier
Click here to download product specification
P R O D U C T Â S P E C I F I C A T I O N

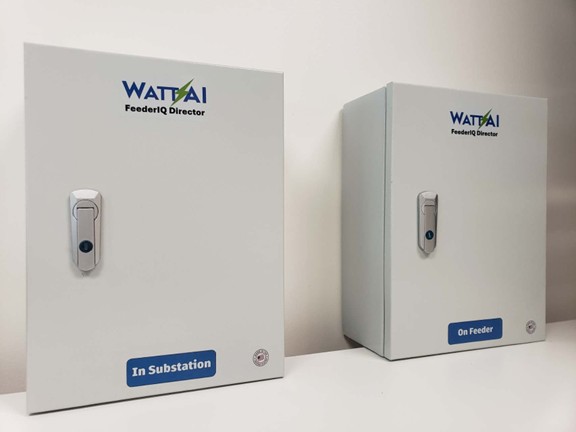

FeederIQ Medium Voltage Power Line Carrier
Overview: FeederIQ Medium Voltage V Power Line Carrier is designed to address the distribution network challenges faced by utilities. The major challenges include:
Erroneous Transformer Phase Information: This degrades the performance of advanced applications such as ADMS.
Limited or No Transformer Health Information: This prevents transformer overload.
4G Coverage Limitation: Within the utility’s service territory, especially in high fire risk areas, the O&M cost is high as more 4G devices are deployed.
No Power Quality Measurement: On the secondary.

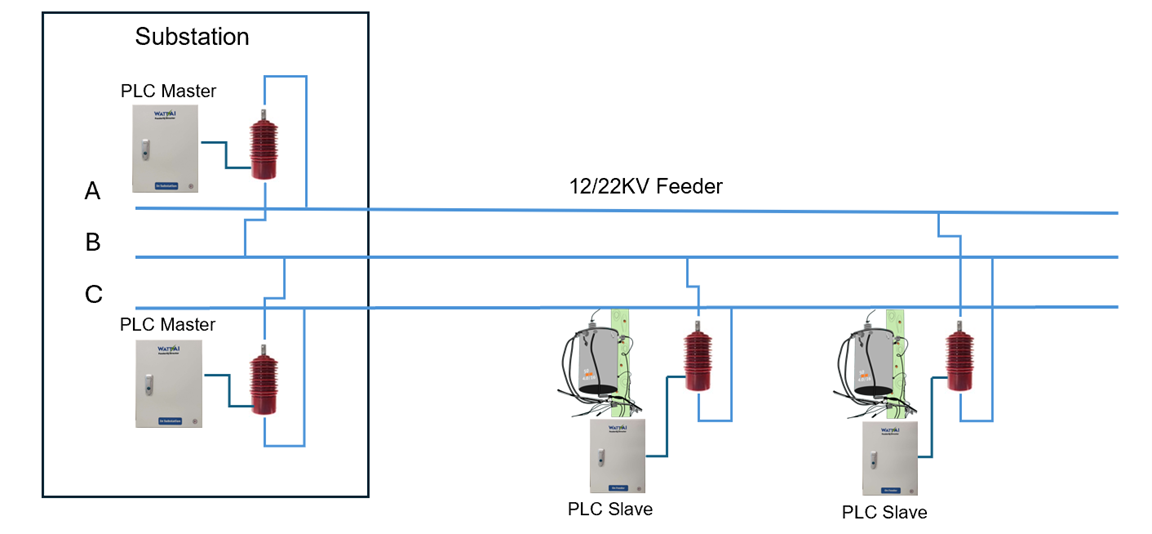

Innovative Approach: To overcome these challenges, FeederIQ MV Power Line Carrier uses the following communication technology to provide full coverage of the feeder communication.

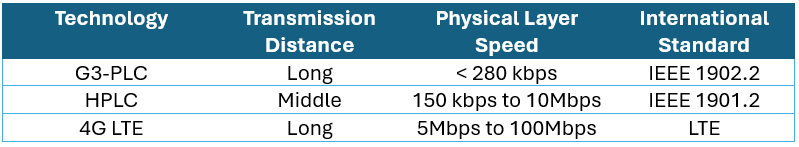

Technology
Medium Voltage Power Line Carrier
T E C H N I C A L Â F E A T U R E S
OFDM-based Modulation/Demodulation: Provides superior noise immunity.
Point-to-Point Communication Range: Achieves 2-3 miles at 5 Mbps data rate.
Extended Coverage: Supports relay mode for coverage up to 30 miles.
Secure PLC Compliance: Complies with international power line communication (PLC) standards and integrates multilayer security protocols.
