- EdgeIQ Rogowski CT

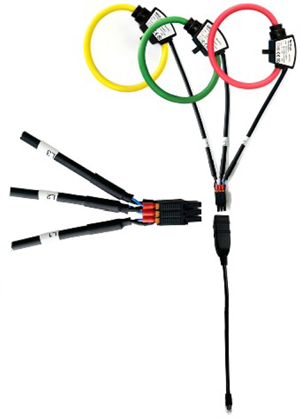

EdgeIQ Director supports both Rogowski Coil and Camp-on CT for non-intrusive current measurement based on installation type. For pole-top transformer current measurement, the Rogowski Coil is recommended. For pad-mount transformer or indoor applications, the Camp-on CT is sufficient.

Click here to download product specification

P R O D U C T S P E C I F I C A T I O N

Instantaneous Measurement

Phase voltage: U1, U2, U3, AVG, U0 (zero sequence voltage)
Line voltage: U12, U23, U31, AVG
Current: I1, I2, I3, AVG, In
Frequency: F1, F2, F3
Power factor PF: PF1, PF2, PF3
Fundamental power factor DPF: DPF1, DPF2, DPF3
Active power: P1, P2, P3, Σ (total)
Reactive power: Q1, Q2, Q3, Σ (total)
Apparent power: S1, S2, S3, Σ (total)

Energy Measurement

Positive active energy: EP1, EP2, EP3, Σ (total)
Negative active energy: EP1, EP2, EP3, Σ (total)
Positive reactive energy: EQ1, EQ2, EQ3, Σ (total)
Negative reactive energy: EQ1, EQ2, EQ3, Σ (total)
Apparent energy: ES1, ES2, ES3, Σ (total)

Harmonics

Current harmonic percentage
- Total harmonics: I1, I2, I3
- Odd total harmonics: I1, I2, I3
- Even total harmonics: I1, I2, I3
Current harmonic value
- Harmonics 1-50: I1, I2, I3

Measurement Accuracy

- Current measurement: 0.1%
- Frequency: ±0.01% (45~65Hz)
- Power factor: ±0.005
- Active and apparent power: IEC62053-22 Class 0.5S
- Reactive power: IEC62053-21 Class 1S
- Active energy: IEC62053-22 Class 0.5S
- Reactive energy: IEC62053-21 Class 1S
